HYDRACORE 2000

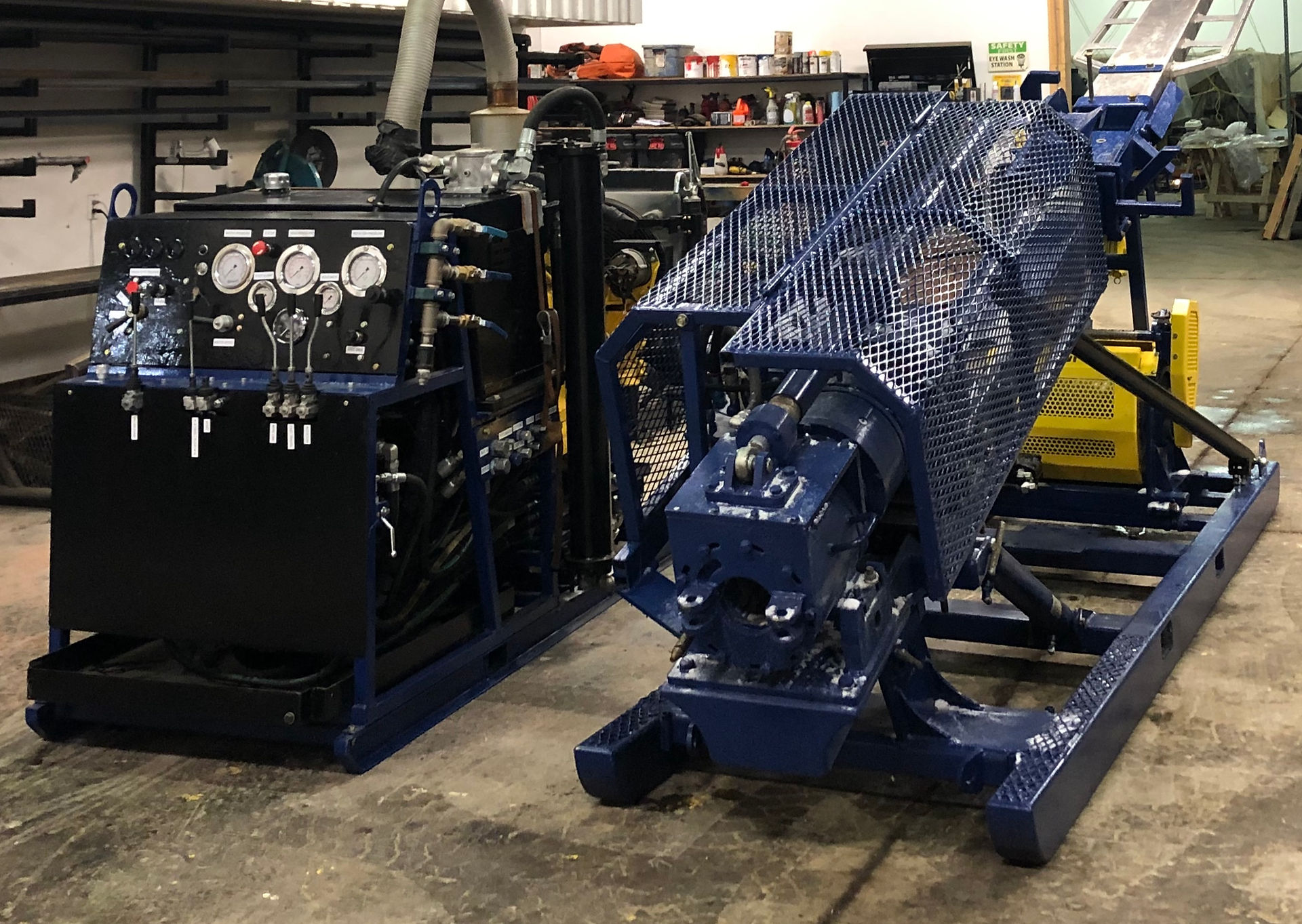

Full Force Drilling offers a fleet of Hydracore 2000 drills in fly, skid or track mounted configuration.

It is one of the most versatile machines for core drilling in the industry and can reach depths of 800 meters NQ.

The Hydracore 2000 is very efficient for flying, with the heaviest load being 523 Kg (1150 lb).

It can be flown in 5 main component loads with a Long Ranger helicopter, or 4 main component loads with an A-Star B2. Full Force has modified the Hydracore to make it stronger, safer and more environmentally friendly. We have added custom guarding on all moving parts, emergency stop switches, a stronger tower, quick coupled hydraulic hoses, level wind wireline winch, and 110 % spill

containment.


DEPTH CAPACITIES



HQ  500 m ( 1640' )



NQ  800 m ( 2620' )



BQ  950 m ( 3110' )





ADDITIONAL FEATURES

- Level wind winch



- Rod handler (optional)



- Centrifuge system (optional)



- P head (optional)

- Emergency stop switches

- 110% spill containment

- Full guarding on moving parts

DRILL WEIGHTS

Hydraulic power pack (wet)

Isuzu diesel motor

Tower, feed frame, cylinders, foot clamp

Head with 160 cc motor

Level wind winch (900 m of line)

364 Kg (800 lb)

523 Kg (1150 lb)

509 Kg (1120 lb)

264 Kg (580 lb)

318 Kg (700 lb)

ADDITIONAL FLY LOAD WEIGHTS

Mud tank with 435 pump and mixer motor

4 Person insulated survival shack

70 Gallon fly diesel tank with 110% containment

99 Gallon fly diesel tank with 110% containment

Core baskets (empty) capacity 18 NQ or 15 HQ boxes

16'x16' Drill shack (fly's fully assembled)

Rod rack with 2 large tool boxes and tooling

435 Supply pump with containment and surge bottle

400 Kg (880 lb)

493 Kg (1085 lb)

376 Kg (827 lb)

501 Kg (1102 lb)

73 Kg (160 lb)

291 Kg (640 lb)

500 Kg (1100 lb)

598 Kg (1315 lb)


Drill Slide and Feed Cylinder
Pullback 24,000 lbs. (at 2500 psi hydraulic pressure 3500 psi

is maximum)
Thrust 16,000 lbs. (at 2500 psi hydraulic pressure 3500 psi

is maximum)
Stroke 70 inches
Weight 550 lbs.



Powerpack
Engine John Deere 4045 115 HP or others
Main Pump 60 GPM, 3000 psi
Auxiliary Pumps (2) 10 GPM, 2500 psi
Feed Pump 1 GPM, 3000 psi
Hydraulic Tank 12.5 Gallons (US)
Cooling Water cooled, heat exchanger
Weight of power and Duetz Diesel motor 1950 lbs.



The powerpack is designed to quickly split into two parts: one weighing 800 lbs., and the engine
which weighs 1150 lbs. in its frame with the battery.
